Connections Page

On the Connections page, you can add new connections or modify the connections that you've already created. From the Alteryx Analytics Cloud (AAC) landing page, select Connections from the top navigation bar.

Nota

Access to the Connections page is governed by roles in your workspace. For more information, please contact your workspace administrator.

Nota

Before you can connect to relational sources, you must allowlist the Alteryx service to access your relational database instances. For more information, go to Allowlist Platform Service.

Connections Fields

  • Name: Display name of the connection.

  • Technology: The type connection type. For more information, go to Connection Types.

    Nota

    After you create a connection, you can't modify its type.

  • Owner: AACAAC user who owns the connection.

  • Shared With: Review the sharing status of the connection:

    • Global: The connection is shared with all users of the workspace.

    • X Users:

      • If this value is 1, the connection is private.

      • If this value is greater than 1, the connection is shared. Select the link in this column to review the sharing status. Go to Share Connection Dialog.

  • Last Updated: The last date that a user updated the connection.

Other Actions

  • Create Connection: Select Create Connection to create a new connection. Go to Create Connection Window.

  • Search: Select the search icon to search your connections by name.

  • Filter: Select the filter icon to review connections that you own, that are shared with you, or all connections to which you have access.

  • Review Details: Select a connection to go to the Connection Details page.

  • Browse Data: Select Browse Data to view the data available to you in your connection.

Connection 3-dot Menu

  • Edit: If you own the connection, you can review and modify the connection.

    • If the connection has been shared with you, you can edit it to modify the credentials.

    • Administrators can edit public connections.

    • Go to Create Connection Window.

  • Share: For connections that you own, you can modify the sharing status of them. Go to Share Connection Dialog.

  • Transfer ownership: (Available to owner or admin only) Transfer ownership of this asset to another user. Go to Transfer Asset Ownership.

  • Delete: Delete the connection.

    Nota

    This option is only available to the connection owner if the connection is not used for any datasets.

Connection Details Panel

When you select a connection, you can review its details and make modifications as needed through the panel on the right.

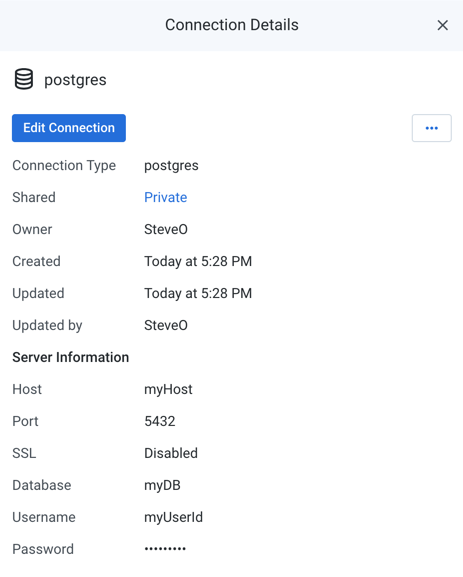

Figure: Connection Details panel

Key Fields:

  • Shared: Number of users sharing the connection. If a link is present, select it to modify the sharing of the connection. Go to Share Connection Dialog.

  • Server Information: For server-based connections, you can review the connection properties.

Actions:

  • Edit Connection: If you own the connection, you can review and modify the connection.

  • Share: You can share connections that you own or that are shared with you. Go to Share Connection Dialog.

  • Transfer ownership: (Available to owner or admin only) Transfer ownership of this asset to another user. Go to Transfer Asset Ownership.

  • Delete: Delete the connection.

    Atenção

    If you delete a connection, that action can't be undone.
